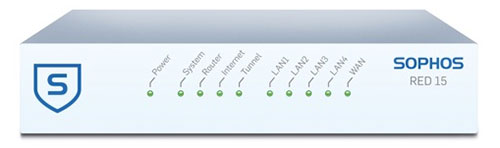

Sophos RED 15
Securely connects branch offices without local setup
Sorry, this product is no longer available, Please contact us for a replacement.
**For Remote/Home use try: Sophos XG86/XG86w Wireless or XG106/XG106w Wireless
Overview:
Highlights:
- Easily extend your secure network anywhere
- Two models suiting any type of deployment: RED 15 and RED 50
- The strongest AES- 256 bit encryption
- Work seamlessly with Sophos Wireless Access Points
- Apply the same protection to all locations or customize it to meet your needs
- Easy maintenance with automated updates
Features:
Plug-and-protect deployment
Sophos RED makes extending your secure network to other locations easy. It requires no technical skills at the remote site; simply enter the RED device ID into your Sophos appliance and ship it. As soon as it's plugged in and connected to the Internet, it will contact your firewall and establish a secure dedicated VPN tunnel. It's that easy.
Flexible configuration
Set up your RED devices to tunnel all traffic from the remote location back to the firewall, controlling DHCP and other network elements of the remote network. Or you may choose to only route inter-office network traffic via RED, while enabling direct Internet access from the remote location.
Secure encrypted tunnel
All data between the RED and your firewall is encrypted to the strongest AES-256 levels ensuring a tamper- and hack-proof, secure connection. And with our latest XG and SG Series, encryption performance makes this level of protection completely transparent.
Easy centralized management
Since RED is effectively a virtual Ethernet cable connecting your remote locations, centralized management of your distributed network is as easy as managing a single location. You can choose to apply the same firewall, web and other security policies across both local and remote traffic. Or you can create custom policies by location.
Specifications:
Choose your RED
Our RED 15 and RED 50 devices are built on the latest enterprise-class, high-speed networking platforms. They work with any Sophos UTM/firewall appliance (hardware, software, virtual or Cloud). Our full range of Sophos Wireless Access Points are also compatible with Sophos RED.
Licensing
To use a Sophos RED you will need an active Network Protection subscription for either Sophos UTM or Sophos XG Firewall.
| RED appliance | RED 15 | RED 50 |
|---|---|---|
| Capacity | ||
| Maximum users | Unrestricted | Unrestricted |
| Maximum throughput | 90 Mbps | 360 Mbps |
| Physical interfaces | ||
| LAN interface | 4 x 10/100 Base-TX (switch) | 4 x 10/100/1000 Base-TX |
| WAN interfaces | 1 x 10/100 Base-TX, 1xUSB | 2 x 10/100/1000 Base-TX |
| USB interfaces | 1 x USB 2.0 (Rev.2 or higher) | 2 x USB 2.0 |
| Serial console | 1 x RJ45 console | 1 x RJ45 console |
| LED display | Power, system, router, Internet, tunnel , 4 x LAN, WAN | Power, error, 4 x LAN, 2 x WAN |
| Power supply | 110-240 V, 50-60 Hz, max. 1.5 A | 100-240 V, 50-60 Hz, 1.3 A |
| Physical specifications | ||
| Chassis | heavy-duty steel | Heavy-duty steel |
| Mounting | desktop | Desktop/wall/rack (optional) |
| Dimensions (W x H x D) | 165 x 34 x 134.8 mm | 216 x 44 x 189 mm |
| Weight | 600 g / 1.31 lbs | 1.1 kg / 2.43 lbs |
| Power consumption | 7 W | 38.2 W (max.) |
| Operating temperature | 0-40°C (operating), -20-80°C (storage) | 0-40°C (operating), -20-70°C (storage) |
| Humidity | 10-90% (operating), 5-95% (storage), non-condensing | 5-90% (operating), 5-95% (storage), non-condensing |
| Safety regulations | ||
| Certifications | CE, FCC Class B, VCCI, RCM, UL, CCC | CE, FCC Class A, VCCI, C-Tick, UL |
Documentation:
Download the Sophos RED Data Sheet (PDF).
